Swagelok® Welding Systems

Access all the catalogs on Swagelok welding systems

Swagelok Northern California offers a range of Swagelok welding system components, including fixtures and collets, power supply, spare parts and accessories for weld systems, and weld heads.

PDF_symbolonly_sm.pngPlease fill the form to recieve one email with all literature on welding systems.

Access All Swagelok Welding Systems Catalogs + Manuals

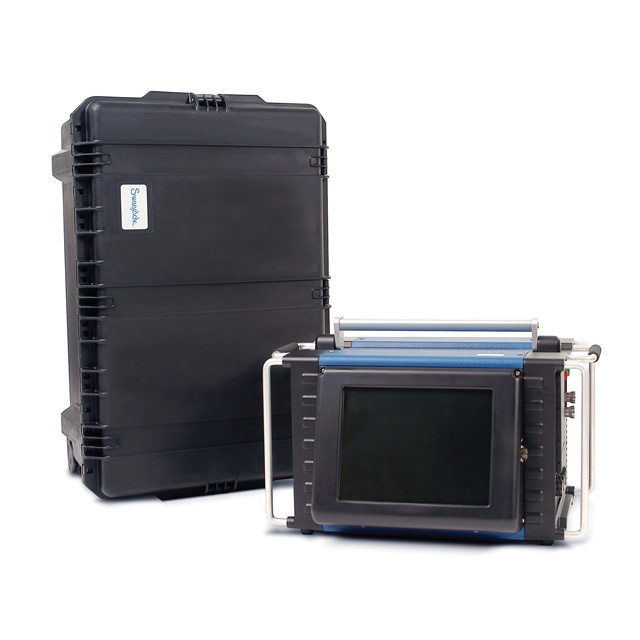

Swagelok® Welding System M200 Power Supply

Power supply for reliable, consistent orbital gas tungsten arc welding; Up to 200 A peak output capability; Easy-to-use color touch screen in multiple languages; Integrated mass flow controller automatically controls OD shield gas flow; Weighs less than 50 lb or 23 kg; Compatible with Swagelok welding system weld heads.

Swagelok M200 Power Supply User's Manual

This manual contains important information for the safe and effective operation of the Swagelok® Welding System M200 power supply. Users should read and understand its contents before operating the M200 power supply.

Automatic ID Purge Control For the Swagelok® M200 Power Supply

The patent-pending automatic purge control for the Swagelok M200 power supply provides a complete and fully automated inside diameter (ID) purge system, for a consistent, repeatable weld bead.

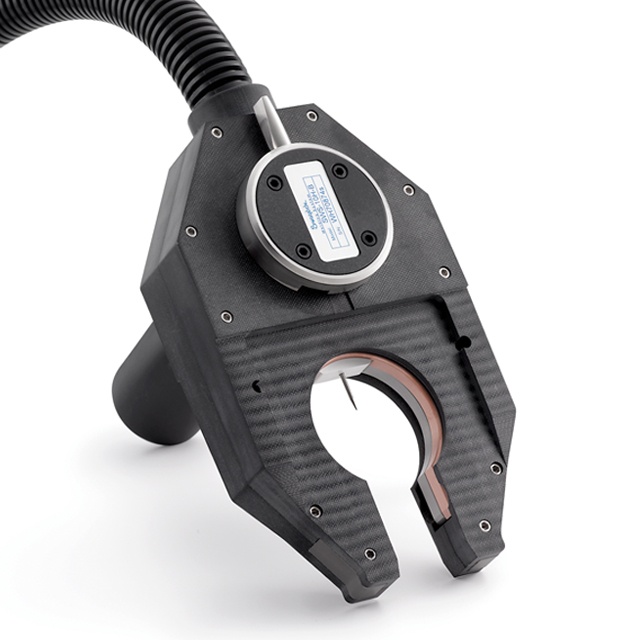

Orbital Welding System Micro Weld Heads: Series 4 and Series 8

Available for tube outside diameters ranging from 1/16 to 1/2 in. and 2 to 12 mm. Features a compact size for easy access to confined welding areas. Weld head includes arc gap gauge, centering gauge, micro fixture tool, tool package, and tungsten electro.

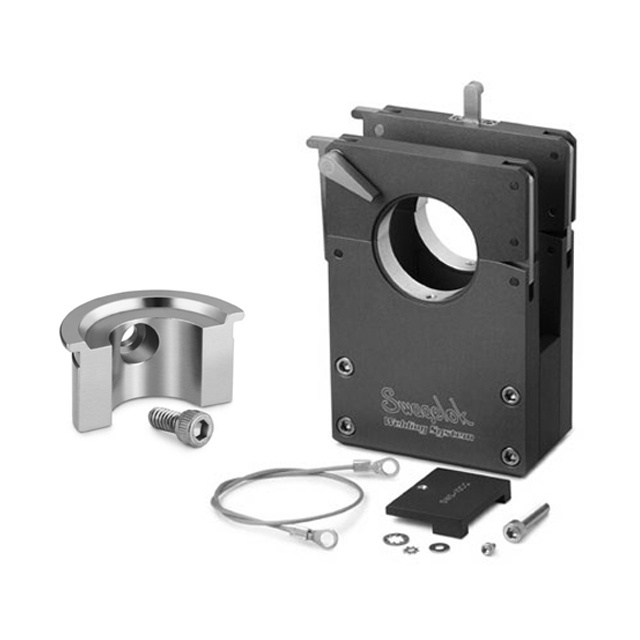

Orbital Welding System, Weld Head, Fixture Blocks, Side Plates, Plenum, and Collets, Series 5

Available for outside diameters ranging from 1/8 to 5/8 in. and 3 to 16 mm; Offers versatility for use in a variety of industries; Weld head includes arc gap gauge, tool package, and tungsten electrodes.

Orbital Welding System: High-Performance Weld Head, Series 8HPH

Accommodates outside diameters ranging from 1/8 to 1/2 in. and 3 to 12 mm, bench top mounted fixture, optical speed control—no tachometer or calibration required, cycle life: 10 000 welds mean-time-to-maintenance (MTTM) for 1/4 in. diameter.

Orbital Welding System: Quick Reference Guide

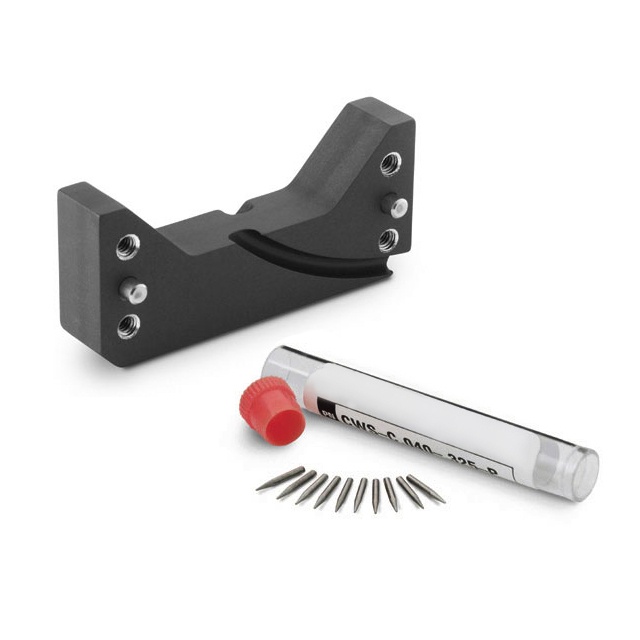

Arc gap and centering gauges. Pipe and tube collets and fixtures. Tungsten electrodes. Weld head and power supply accessories. Internal purge pressure kits. Stainless steel flux. Tube facing tools. Orbital Welding System, Weld Head, Fixture Blocks, Side Plates, Plenum, and Collets, Series 10. Available for tube outside diameters from 1/4 to 1 in. and 6 to 25 mm; Provides higher output capabilities; Offers versatility for use in a variety of industries.

Orbital Welding System, Weld Head, Fixture Blocks, Side Plates, Plenum, and Collets, Series 20

Available for outside diameters ranging from 1/2 to 2 in. and 12 to 52 mm; Provides higher output capabilities; Offers versatility for use in a variety of industries.

Orbital Welding System, Weld Head, Tube and Pipe Collets, and Tungsten Electrodes, Series 40

Available for outside tube diameters ranging from 1 1/2 to 4 in. and 38.1 to 114.3 mm and pipe diameters ranging from 1 1/4 to 4 in. and 42.2 to 114.3 mm; Offers versatility for use in a variety of industries.

Weld Purge Panel - WPP Series

The Swagelok® WPP series welding purge panel displays the flow of purge gas and the resulting pressure at the weld point. This information allows the operator to set up weld
configurations quickly and with repeatability.
