Actuation Options
Swagelok 60 series ball valves are compatible with the following actuators and accessories:
Pneumatic Actuators
- Rack and Pinion
- ISO 5211-Compliant
Electric Actuators
Actuator Accessories
- Solenoid Valves
- Limit Switches
- Position Switches
Three ways to learn more
- Continue reading below the buttons
- Get the literature: Fill the form to get quick links to the 60 Series Ball Valve interactive PDF, quick look, and catalog by email
- Get a hand: Use the buttons below to get help choosing the right valves. Or have us build an assembly or subassembly for you using exactly the right components for your application:
Pneumatic Actuators
Swagelok rack and pinion pneumatic actuators are compact, lightweight, easily mountable, and can
be operated with standard shop air.
- Standard pressure rating is 165 psig (11.3 bar)
- Standard temperature range is -20 to 200°F (-28 to 93°C)
- 90° and 180° actuation
- Spring-return and double-acting
- High temperature, Low temperature, and Nonfluorocarbon service actuators available
- Available for in-house or field assembly
ISO 5211-Compliant pneumatic actuators
The ISO-Compliant Pneumatic Actuators are suitable for general applications.
- Maximum actuator pressure is 116 psig (8.0 bar)
- Standard temperature range is -40 to 176°F (-40 to 80°C)
- Spring-return and double-acting
- 90° and 180° actuation
- Available for in-house or field assembly
Electric actuator
The 60 series is also available with an AC or DC electric actuator.
- 2 and 3-way operation
- Meet both NEMA 4X or IP66 specifications depending upon conduit selected
- Integral limit switches provide output signal of valve position
- Available for 62 and 63 series
Actuation accessories
Swagelok offers a range of accessories to enhance instrumentation and process ball valve performance and control.
- Solenoid valves - attach to the actuator to create an electropneumatically actuated assembly
- Limit switches - indicate actuator position by means of an electrical signal
- Position sensors - Provide visual status for a valve
A Promise as strong as our products
Protect your fluid system investment from installation to everything after.

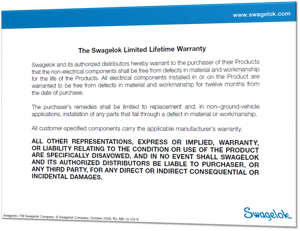

The Swagelok Limited Lifetime Warranty demonstrates our relentless commitment to quality and our customers. Every Swagelok product is backed by this promise for the life of the product.
