Swagelok Fittings

Swagelok fittings deliver extraordinarily reliable performance in a broad range of applications.

Tube fittings and tube adapters

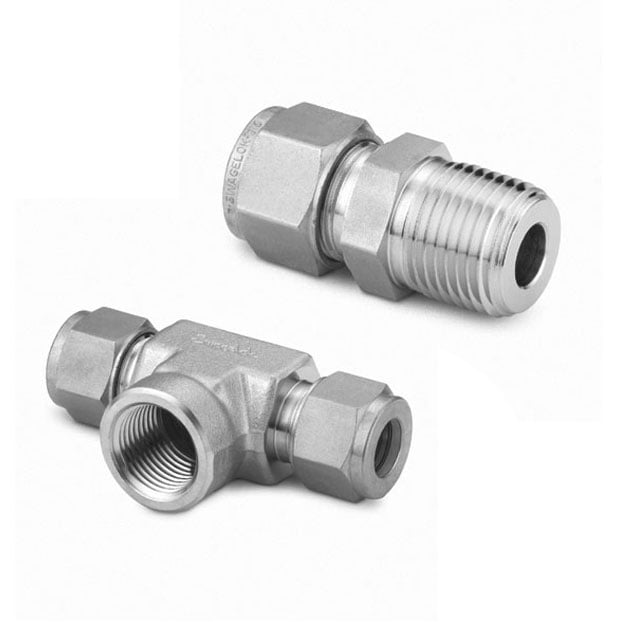

  • Gaugeable Tube Fittings and Adapter Fittings - Available in sizes from 1/16 to 2 in. and 2 to 50 mm; consistent gaugeability upon initial installation; easy to disconnect and tighten; wide variety of materials and configurations.
  • Gaugeable SAF 2507™ Super Duplex Tube Fittings - Excellent corrosion resistance in chloride-containing environments; Advanced-geometry back ferrule design enhances sealing action; Same gaugeability as traditional Swagelok tube fittings; Easy installation using hand tools; Available in sizes from 1/4 to 3/4 in.
  • Gaugeable Alloy 400/R-405 Mechanically Attached Pipe and Tube Fittings - For use with MIL-T-16420K 70/30 and 90/10 copper-nickel tubing and pipe; excellent corrosion resistance in chloride-containing environments; ASTM F1387-qualified for shipboard use; easy installation using hand tools.
  • Gaugeable Chromatograph and Column End Fittings - Suitable for liquid or gas chromatography; 316 stainless steel construction; Offered in sizes from 1/16 to 1/2 in.
  • Heat Exchanger Tube Plugs, TP Series - Heat exchanger tube plugs seal the ends of leaking tubes, providing longer use of the heat exchanger. The uniform taper and the smooth surface finish assure positive sealing with minimum installation force.
  • Swagelok Coaxial Tube Fittings Bulkhead Mounted Tees / Unions and Closure Unions Simplify the Installation of Coaxial Gas Delivery Systems

  • Adapter Elbows and Tees - Unique Adapter Fittings Simplify Installation and Help Reduce the Size of Your Systems

  • Tubing Data Sheet - Tubing data, tubing selection, tubing handling, gas service, tubing installation, suggested allowable working pressure tables, elevated temperature factors.
  • Tubing Data Sheet, Engineered Combinations - Scope: This data sheet contains suggested allowable working pressures for assemblies of Swagelok® tube fittings with tubing of diverse materials. Tubing data, tubing selection, tubing handling, gas service, tubing installation, suggested allowable working pressure tables, elevated temperature factors.
  • An Installer's Pocket Guide for Swagelok® Tube Fittings - Intermixing/Interchanging; Metric Swagelok Tube Fitting; Installation Instructions; Hydraulic Swaging Units; Tubing; Ordering Information.

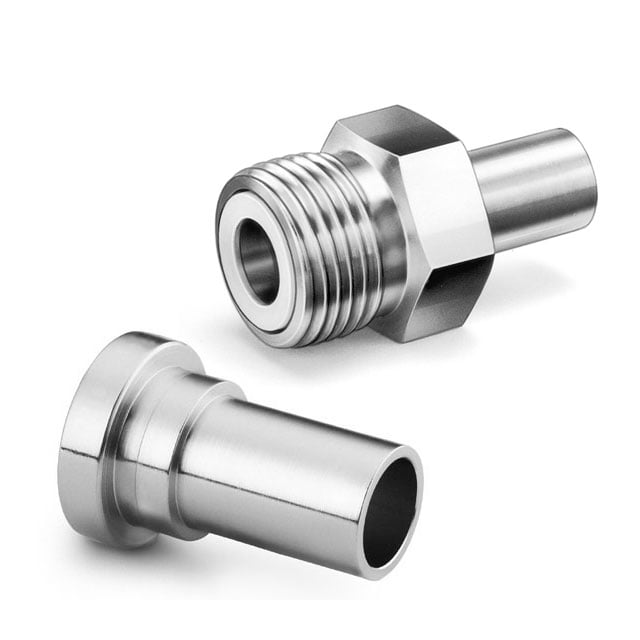

B Type VCO® L-Ring Face Seal Fittings

"B" type VCO - For applications in Biotechnology and Pharmaceuticals - The “B” type VCO fitting uses an L-ring seal that eliminates concavity at the bore. This feature reduces the potential for media entrapment.

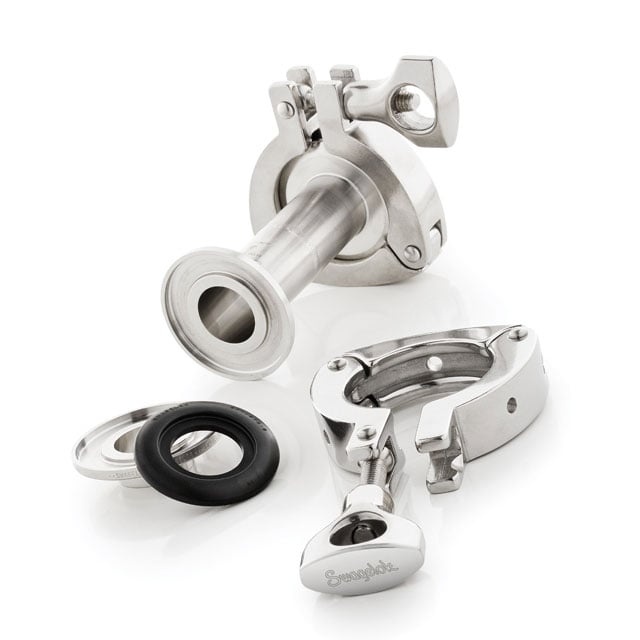

Biopharm Fittings

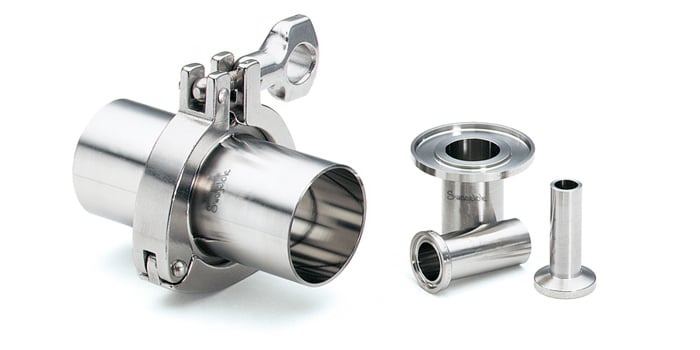

Biopharm Fittings, For the Bioprocessing and Pharmaceutical Industries, TS Series - Virtually eliminates fluid holdup; Improves drainability; Enhances cleanability; Provides easy assembly; 1/2 through 4 in. outside diameter.

Dielectric Tube Fittings

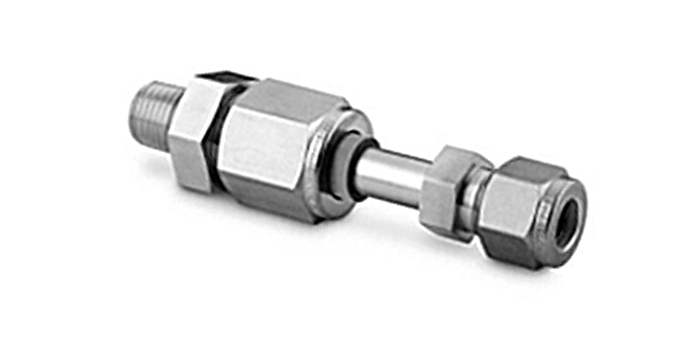

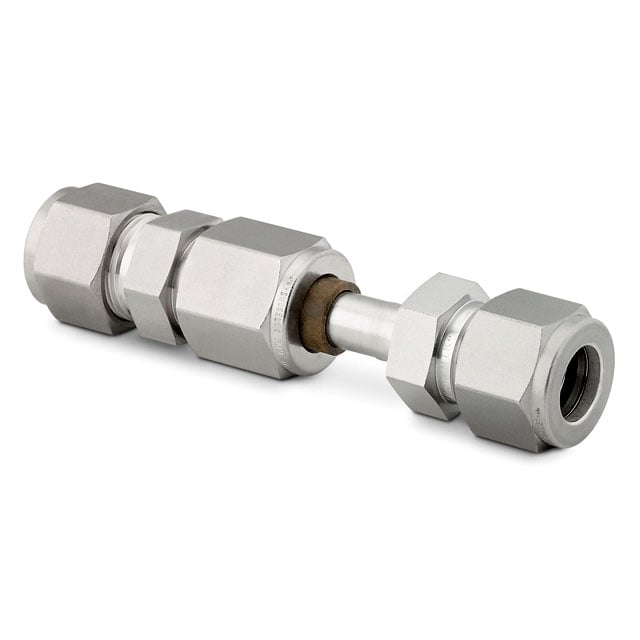

Dielectric Fittings - Metal components are machined from 316 stainless steel for use in rugged environments.

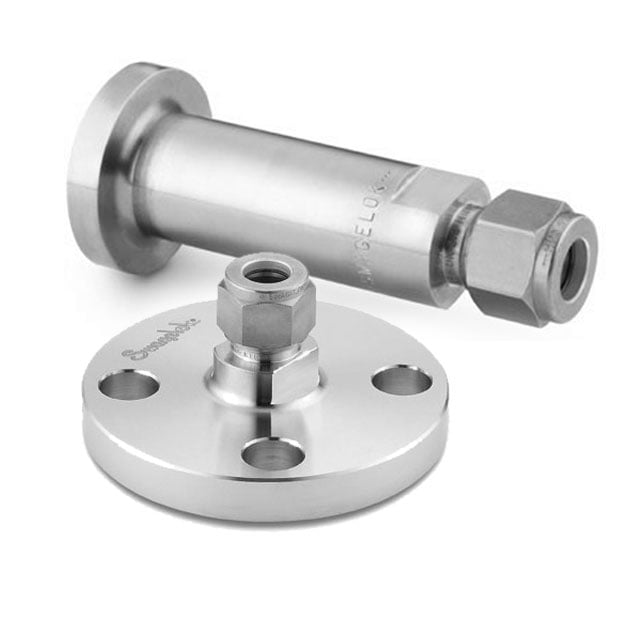

Flange to Swagelok Tube Fittings

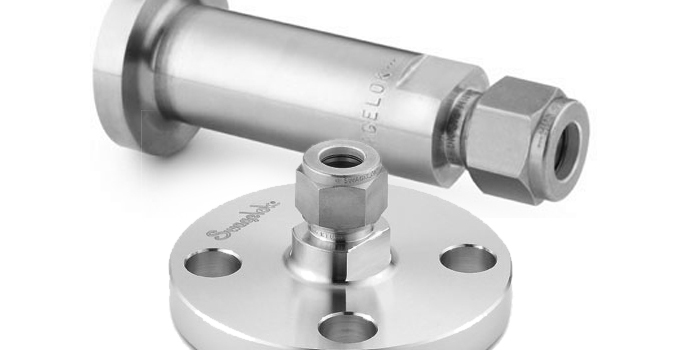

Flange Adapters - Threadless, weldless transition from flanged piping systems to tubing systems; Flange types meet ASME, DIN, EN, and JIS standards; One-piece integrally machined forged body; Available with Swagelok® tube fitting end connections up to 50 mm and 2 in.

Jacketed Tube Connector (JTC)

  • Jacketed Tube Connector (JTC) - The Swagelok® jacketed tube connector (JTC) is a fitting designed to provide a leak-tight connection on the end of single-jacketed tubing, eliminating the need for sleeves and
    sealing tape.
  • Installation Instructions for Swagelok® Jacketed Tube Connector - These instructions apply to jacketed tube connectors sizes 1/4 in., 3/8 in. and 1/2 in.

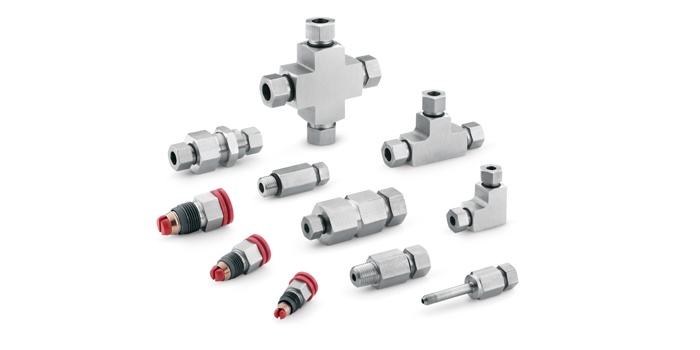

Medium- and High-Pressure Fittings

  • Medium- and High-Pressure Fittings, Tubing, Valves, and Accessories - Features: These precision medium- and high-pressure fittings, valves, and tubing are made from 316 stainless steel. Other materials are available to meet NACE MR0175/ISO 15156. They are designed for the oil and gas, chemical, petrochemical, water jet cutting and blasting, and aerospace industries.
  • Alloy 625 Tube, Medium-Pressure, Pipe, and Weld Fit tingsNACE MR0175 Table A.13 Compliant MS-06-0119-E

PFA Fine Thread Flare Fittings

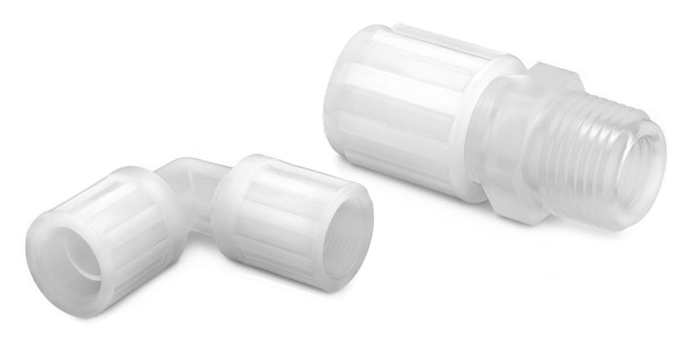

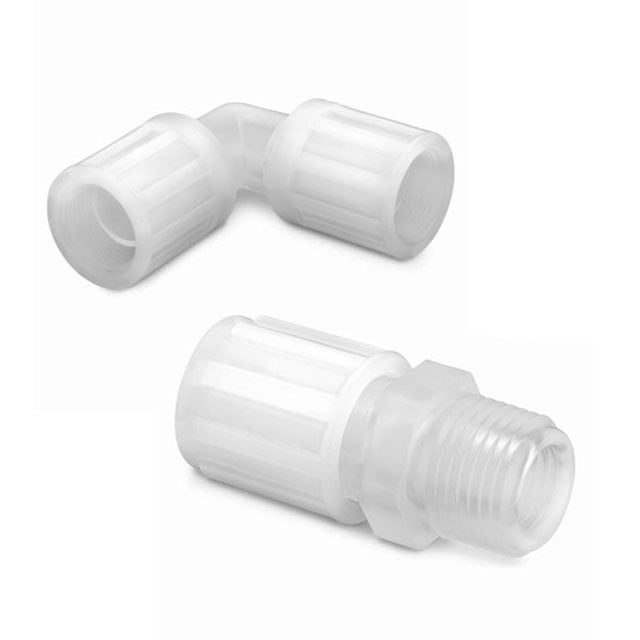

High-Purity PFA, Fine Thread Flaring Fittings - Available in 1/4, 3/8, 1/2, 3/4 and 1 in. tube sizes; PFA and PVDF nut options; a wide variety of configurations.

PFA Tube Fittings

PFA Tube Fittings and Tubing - Temperatures from 70 to 400ºF, working pressures up to 275 psig, tube fitting sizes from 1/8 to 1/2 in.; tubing sizes from 1/8 to 1 in. and 6 to 12 mm.

Pipe Fittings

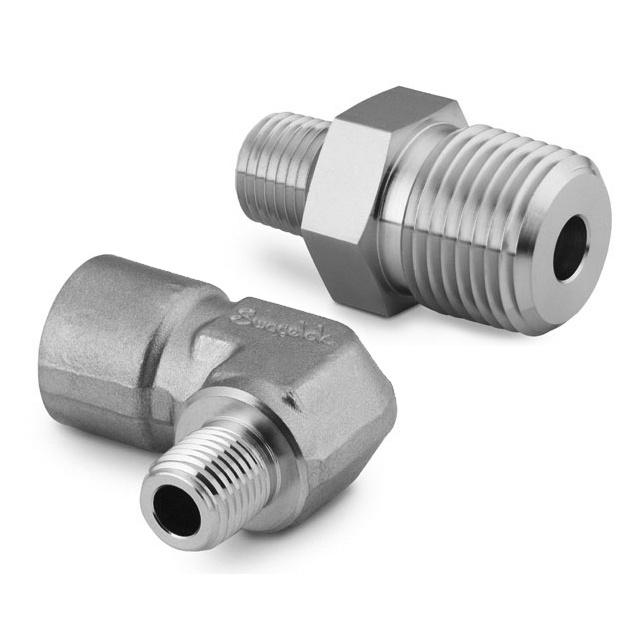

  • Pipe Fittings - 1/16 to 1 in. sizes; 316 stainless steel, brass, and carbon steel; NPT, ISO/BSP, and SAE threads.
  • Gaugeable Alloy 400/R-405 Mechanically Attached Pipe and Tube Fittings - For use with MIL-T-16420K 70/30 and 90/10 copper-nickel tubing and pipe; excellent corrosion resistance in chloride-containing environments; ASTM F1387-qualified for shipboard use; easy installation using hand tools.

Vacuum Fittings

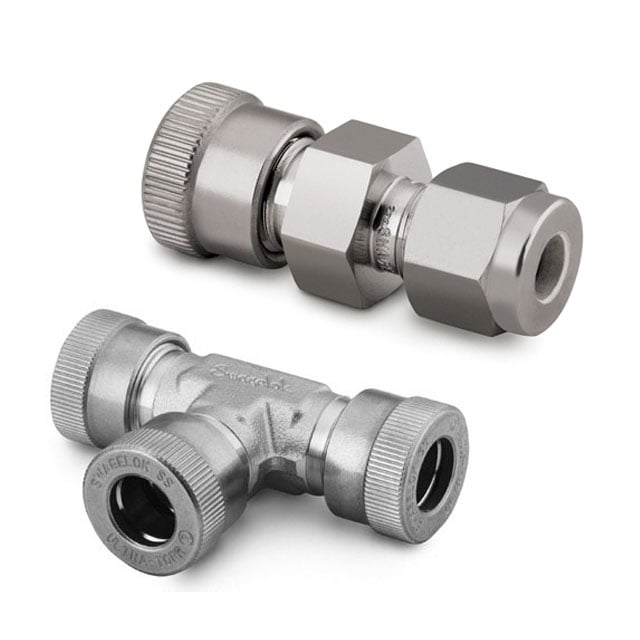

  • UltrTorr Vacuum Fittings - Features: Stainless steel construction, fluorocarbon FKM O-ring; Reliable, repeatable sealing performance; Available in tube sizes from1/16 to 1 ½ in.
  • Vacuum Fittings, Adapter Fittings - KF to VCR® metal gasket face seal, VCO® O-ring face seal, NPT, Swagelok® tube fitting, and ultra-torr vacuum fitting; CF to VCR metal gasket face seal and Swagelok tube fitting.

VCO® O-Ring Face Seal

VCO® O-Ring Face Seal Fittings - Features: 1/8 to 1 in. sizes; 316 or 316L stainless steel; Tube, NPT, SAE thread, and weld connections.

VCR® Metal Gasket Face Seal

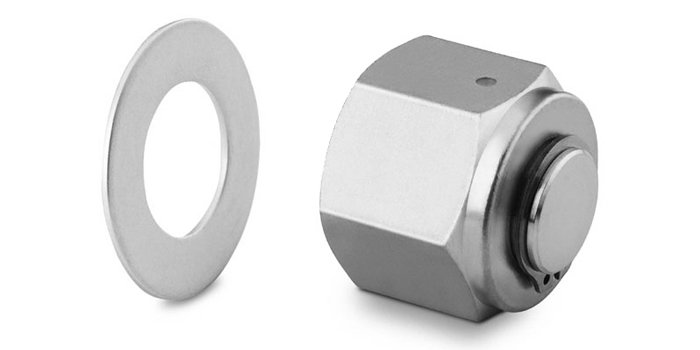

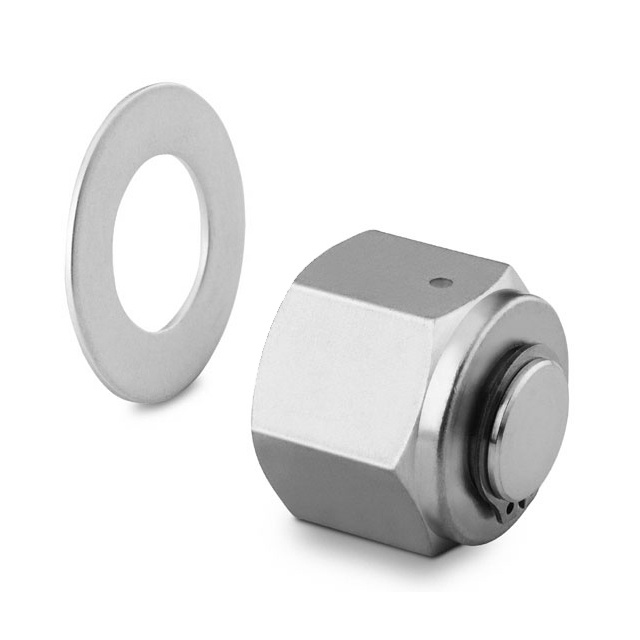

  • VCR® Metal Gasket Face Seal Fittings - 1/16 to 1 in. and 6 to 18 mm sizes; High-purity stainless steels; the original design; the authentic VCR brand.
  • An Installer’s Pocket Guide for VCR® Metal Gasket Face Seal Fittings and Micro-Fit® Weld Fittings

Weld Fittings

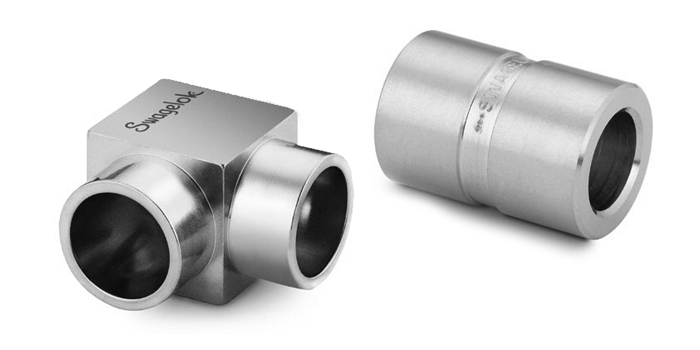

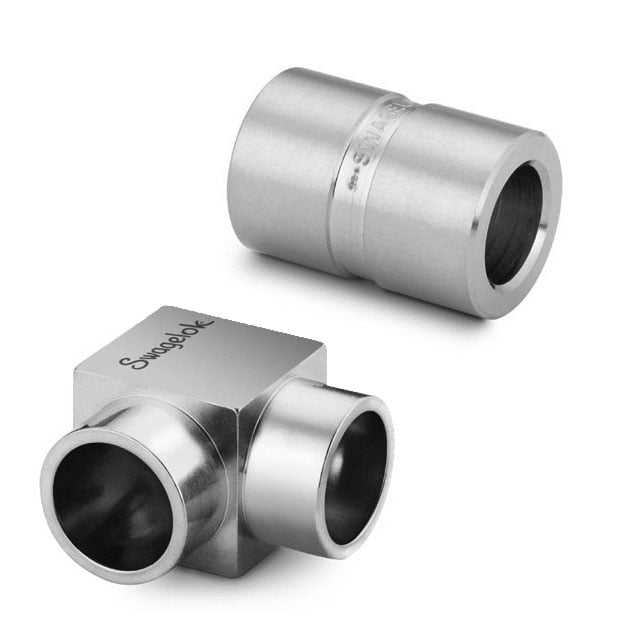

  • Weld Fittings, Ultrahigh-Purity, Specially Cleaned, and Industrial - Features: 1/8 to 1 in. and 6 to 18 mm; 316, 316L, 316L VAR, and 316L VIM-VAR stainless steel materials; Fittings for manual or automatic welding equipment.
  • SAF 2507 Super Duplex Weld Fittings - Excellent corrosion resistance in chloride-containing environments; compact, high-flow SAF 2507 tube system connections.
  • Stainless Steel Tubular Fittings, Ultrahigh-Purity and Chemically Cleaned and Passivated -
    Features: Sizes from 1/4 through 4 in. outside diameter, Metric sizes available upon request, 316L stainless steel construction.
  • Ultrahigh-Purity Stainless Steel Tubular Fittings: Metric Sizes - Sizes from 6 - 18 mm OD; imperial sizes available upon request; 316L stainless steel construction; many configurations including coaxial; marked with material type and heat code.
