Swagelok® Tubing, Tools and Accessories

Access all catalogs on Swagelok tubing, tools, and tube accessories.

Swagelok offers a range of tubing, including Chemically-Cleaned and Passivated, Ultrahigh-Purity Stainless Steel, Sanitary, Medium-Pressure, Pre-Coned, Insulated, Jacketed, and Pre-Insulated Bundles.

   PDF_symbolonly_sm.pngClick here or on the image to the right to receive an email with links to all literature on Swagelok tubing.

VIDEO.pngWatch the How to Use a Hand Tube Bender Tech Tip Video below

TUBING, TOOLS AND ACCESSORIES

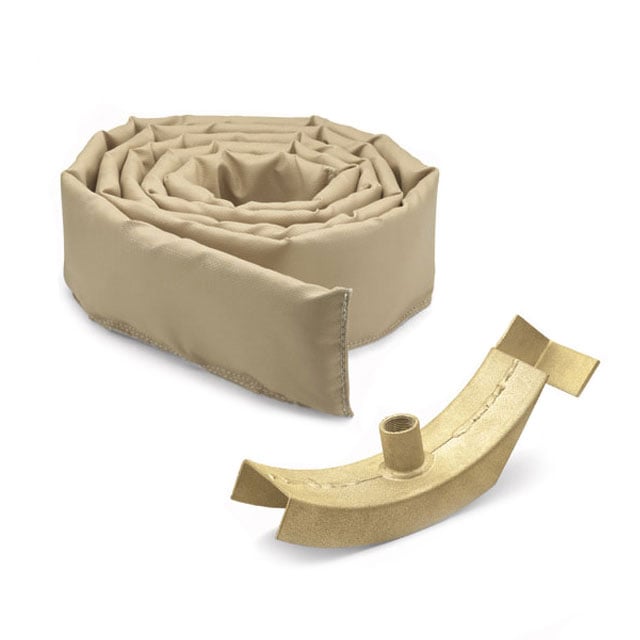

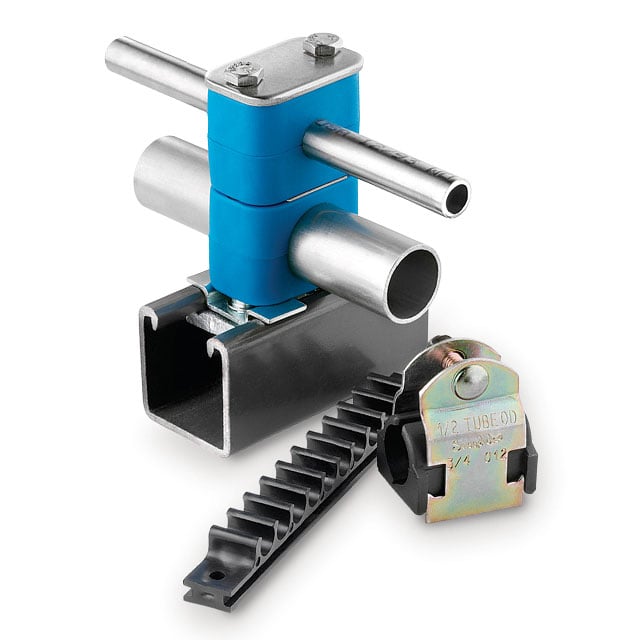

  • Tubing Tools and Accessories — Electric, bench top, and hand tube benders; Tube preparation tools; Tube support systems.

TUBE BENDERS

  • Tubing Tools and Accessories Electric, bench top, and hand tube benders; Tube preparation tools; Tube support systems.

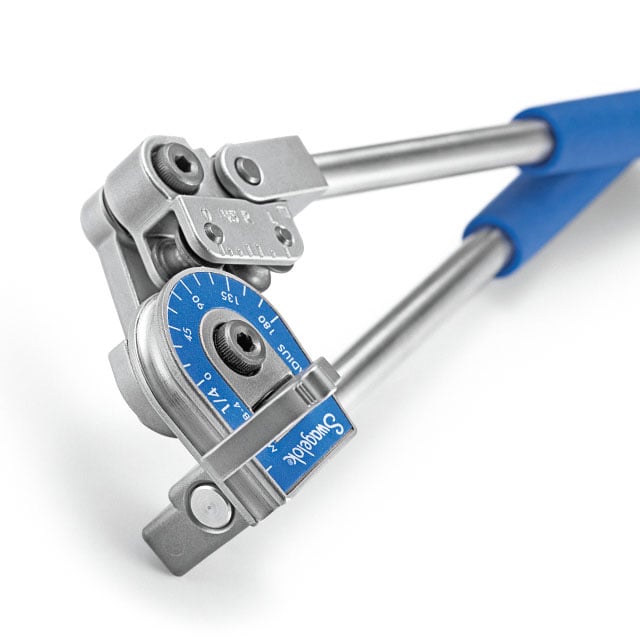

  • Hand Tube Bender Manual — Swagelok® hand tube benders provide consistent, high‑quality bends in tubing made from most materials used with Swagelok tube fittings. Read this manual before using the hand tube bender

TUBE CUTTING AND PREPARATION

  • Tubing Tools and Accessories Electric, bench top, and hand tube benders; Tube preparation tools; Tube support systems.
  • Tube Facing Tools TF16, TF24, TF40, and TF72 Series Prepare Tube Ends for Welding, Tube sizes 1/8 to 4 1/2 in. and 3 to 114.3 mm, Portable and lightweight design for mobility and easy operation, Corded and cordless tools

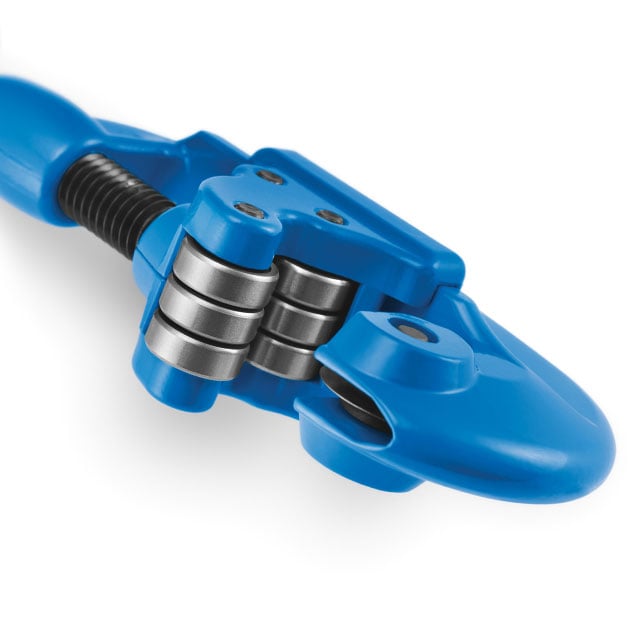

  • Tube Cutting Tool TC72 Series The Swagelok® TC72 series tube cutting tool is designed to
    easily and accurately cut thin-walled stainless steel tubing and elbows to square ends that require minimal additional tube preparation. The deformation-free clamping system allows quick adjustment to accommodate different tube diameters.

TUBING

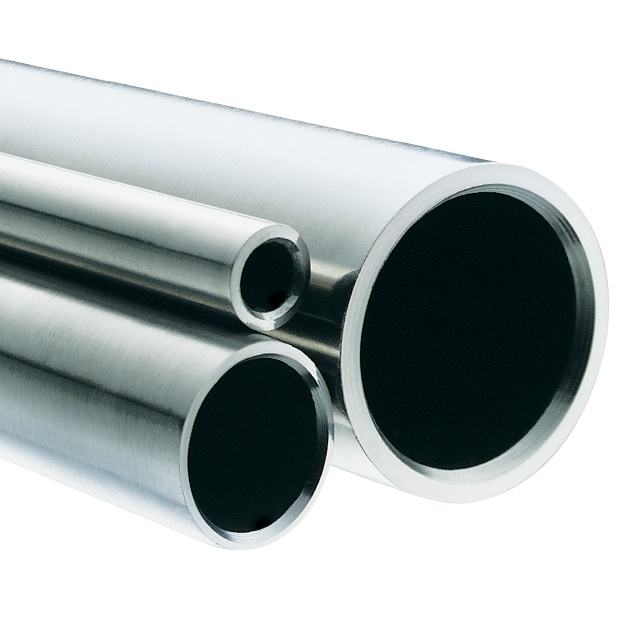

  • Stainless Steel Seamless Tubing, Fractional, Metric, and Imperial Sizes 316/316L and 304/304L stainless steel; Standard instrumentation tubing; 1/8 to 2 in and 3 to 25 mm sizes.
  • Stainless Steel Titanium Alloyed Tubing: Metric Sizes, Seamless Tubing 3 to 25 mm OD; 316L stainless steel titanium alloyed; DIN 17458.
  • Multijacketed Tubing, Single-Jacketed Tubing, and Insulated Tubing 1/4 to 1/2 in. and 6 to 12 mm tubing sizes available in 316/316L stainless steel and copper; Seamless and welded tubing available in stainless steel.
  • Pre-Insulated Tubing Bundles, Electric-Traced and Steam-Traced 1/4 to 1/2 in. and 6 to 12 mm tubing sizes available in 316/316L stainless steel and copper, Seamless and welded tubing available in stainless steel, Thermoplastic polyurethane (TPU) and PVC jackets help protect tubing from external
    corrosion and abrasion, Fibrous glass insulation reduces heat loss and helps protect personnel
  • SAF 2507 Seamles Super Duplex Tubing, Fractional Sizes Simplified field installation, 1/8 to 3/4 in. and 6 to 12 mm seamless or welded tubing sizes, 316 / 316L stainless steel, copper, and PFA tube materials
  • Ultrahigh-Purity (UHP) and High-Purity Stainless Steel Tubing, Fractional, Metric, and Imperial Sizes 316L stainless steel; Ultrahigh-purity, coaxial, chemically cleaned and passivated, and thermocouple-cleaned tubing; Ends prepared for orbital welding; 1/8 to 2 in and 6 to 18 mm sizes.

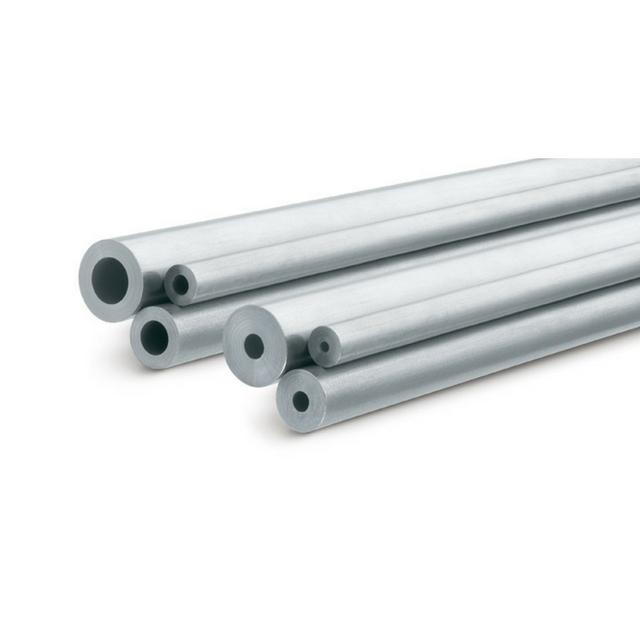

  • Medium- and High-Pressure Fittings, Tubing, Valves, and Accessories Features: These precision medium- and high-pressure fittings, valves, and tubing are made from 316 stainless steel. Other materials are available to meet NACE MR0175/ISO 15156. They are designed for the oil and gas, chemical, petrochemical, water jet cutting and blasting, and aerospace industries.

TUBING DATA

  • Tubing Data Sheet Tubing data, tubing selection, tubing handling, gas service, tubing installation, suggested allowable working pressure tables, elevated temperature factors.
  • Tubing Data Sheet, Engineered Combinations Scope: This data sheet contains suggested allowable working pressures for assemblies of Swagelok® tube fittings with tubing of diverse materials. Tubing data, tubing selection, tubing handling, gas service, tubing installation, suggested allowable working pressure tables, elevated temperature factors.

featured Tubing accessory: watch how to use the swagelok hand tube bender
