Swagelok® Smart Products and Systems

Bring intelligence to your sampling system: Work Smarter not harder

Real-time, intrinsically safe monitoring of sample handling system health, remotely or at the plant data network

Smart products capture and report critical flow, temperature, and pressure of process samples destined for process analyzers. Swagelok offers the Intelligent Control Module™ (ICM™) Product, Digital Valve Control Module (VCM), Intrinsically Safe Pressure and Temperature Transducers (PTX Series), and Digital Pressure and Temperature Transducers (PTX Series).

  • Get the literature: Fill the form on this page to get quick links by email. We keep your email private.
  • Get a hand: Want help choosing, or assembling a smart products with other parts? We're here to help.

Help me choose ›Build it for me ›

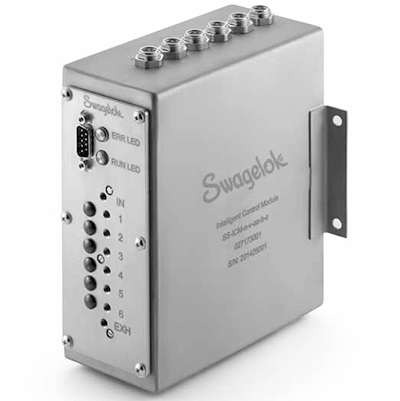

Intelligent Control Module - ICM

Intelligent Control Module™ (ICM™) Product

The Swagelok ICM product is an intrinsically safe (Class 1, Division 1 / ATEX Zone 0 rated) device.

  • Operates up to six pneumatic stream selection valves
  • Accepts analog and digital inputs from a variety of sensors
  • Provides intrinsically safe power to sensors requiring 24 volts to operate
  • Brings control and logic functionality to the sample system through an embedded script processor
  • Communicates with other systems through a CANopen® network interface

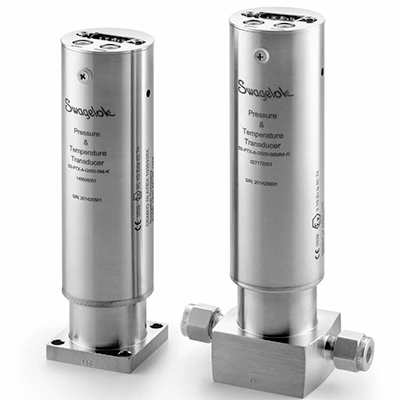

Intrinsically Safe Pressure and Temperature Transducers

Intrinsically Safe Pressure and Temperature Transducers

The Swagelok intrinsically safe PTX series transducer is specifically designed to  measure pressure and temperature of sample system fluids.

  • Reduces delay time dramatically with a low-volume flow path and rapid purge bowl design
  • Is approved internationally for use in any hazardous location (Class I , Division 1/ ATEX Zone 0)
  • Communicates with Swagelok intrinsically safe ICM product or other traditional automation equipment with suitable analog inputs
  • Is available with 1/4 in. and 6 mm Swagelok tube fittings or Swagelok MPC series modular system end connections

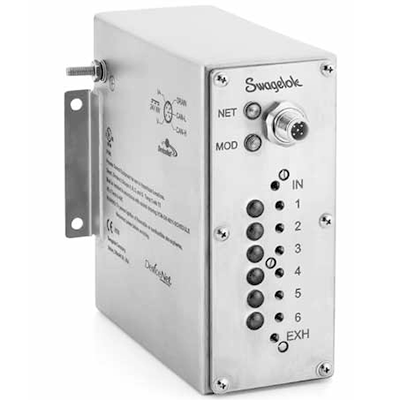

Digital Valve Control Module (VCM)

The Swagelok Digital Valve Control Module (VCM) is a Class 1, Division 2 rated device.

  • Actuates up to six pneumatic stream selecting valves
  • Accepts digital inputs as an option
  • Communicates with other systems through a DeviceNet™ network interface.

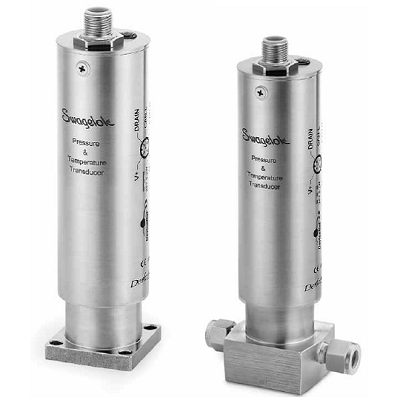

Digital Pressure and Temperature Transducers (PTX Series)

The Swagelok Digital Pressure and Temperature Transducers (PTX Series) is a digital pressure and temperature transducer specifically designed to measure pressure and temperature of sample system fluids.

  • Reduces delay time dramatically with a low-volume flow path and rapid purge bowl design
  • Is approved for use in Class I, Division 2 hazardous locations
  • Communicates with Swagelok VCM or other DeviceNet products
  • Is available with 1/4 in. and 6 mm Swagelok tube fittings or Swagelok MPC series modular system end connections
